Neurovascular Simulation Solutions

The customizable neurovascular simulated use solutions from BDC Laboratories provides a complete, state-of-the-art, turnkey platform to evaluate neurovascular procedures for intravascular interventions, such as placing a flow diverter, embolic coils or other neurovascular devices.

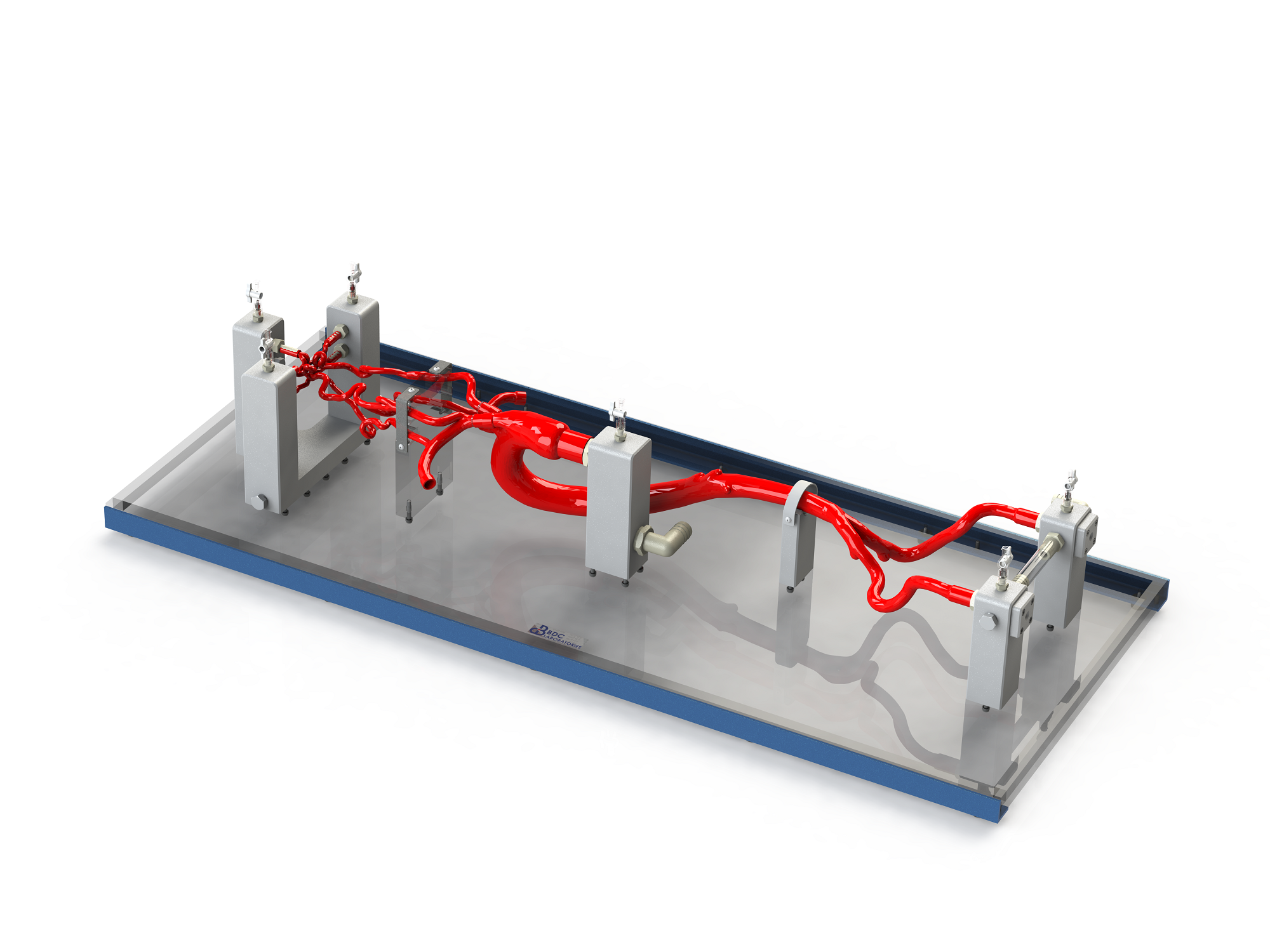

This neurovascular simulation solution consists of a Circle of Willis, internal carotid arteries (ICAs), common carotid arteries, Type III aortic arch, descending aorta and femoral arteries. Within BDC Laboratories’ silicone vasculature catalog, there are five different neuro models available that each have different levels of tortuosity that can be utilized / exchanged within this model. The simulated use solution has access ports with integrated hemostatic valves at the femoral arteries to facilitate insertion, advancement and delivery of neurovascular interventions. Additional, custom access approaches through the radial artery can be further integrated into these simulation systems.

Features and Benefits

  • Clinically relevant bench model for development activities, education and physician training
  • Exchangeable neurovascular vessels available with different levels of tortuosity
  • Vascular aneurysm(s) integrated within the neuro vessels upon request
  • Flow through all branch vessels provides a real clinical experience
  • Clear, compliant silicone vasculature allow visibility of the delivery system and device
  • Integrated hemostatic valves accommodate delivery system entry via femoral access
  • Drip tray catches any fluid spills during testing and neurovascular intervention simulations
  • Silicone vasculature supports ensures the anatomical model retains its 3D configuration during procedures
  • Portable, with optional rugged, hard-sided travel case for air-travel
  • Optional PD-0500 Portable Pulse Duplicator offers temperature-controlled, clinically relevant pulsatile environment
