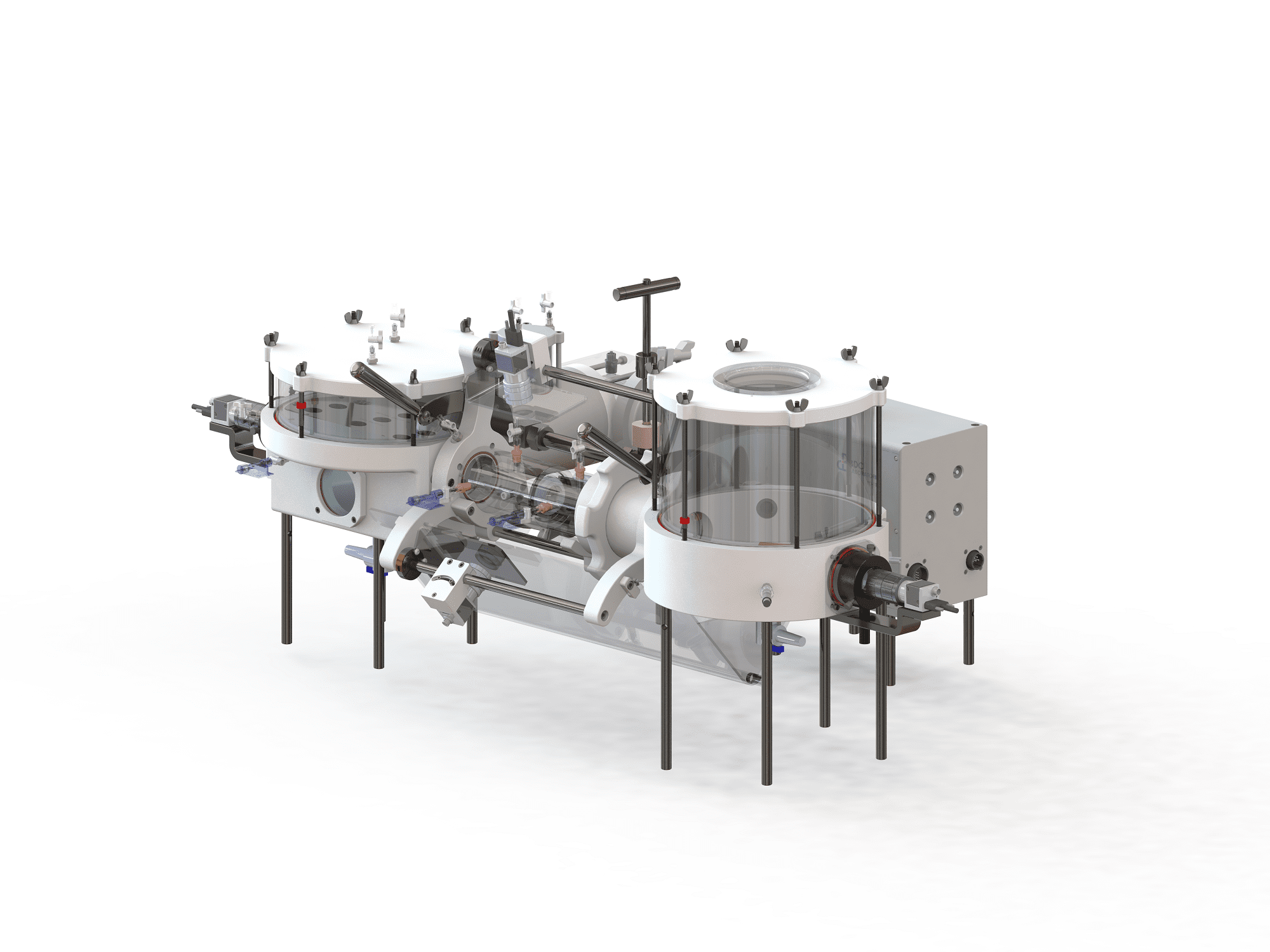

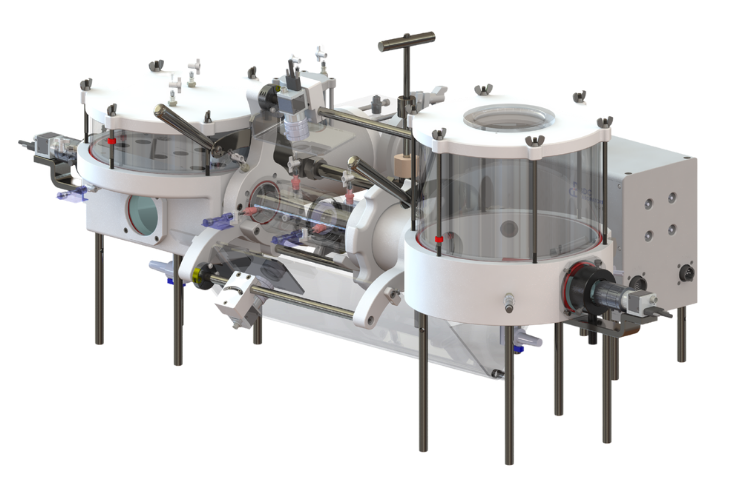

HDTi-6000 Heart Valve Pulse Duplicator Test System

In a revolutionary fashion, BDC Laboratories’ HDTi-6000 heart valve pulse duplicator achieves ISO 5840 performance assessment in a focused and efficient manner similar to our established HDT-500 system, with the added capability of integrated high speed video to facilitate real-time visualization of the heart valve under test. The HDTi-6000 can accommodate up to 5 high speed cameras, all simultaneously documenting multiple test article views with concurrent pressure and flow waveforms. After each heart valve test run, a variety of both waveform analyses and image analyses are available to characterize the heart valve’s performance and leaflet kinematics. Included with the many unique system features is the ability to playback video while synchronized to the pressure and flow waveforms to assess the heart valve leaflets at any particular point in the cardiac cycle.

The HDTi-6000 pulse duplicator can accommodate both surgically implanted and transcatheter valves while being configured as either as a left heart simulator or right heart simulator. Utilizing a novel linear clamp assembly with no need to drain the system between samples, the HDTi facilitates exchange of the test article in minutes and significantly increases productivity. BDC’s proven PD-1100 pulsatile pump is the fluid driving source for the HDTi-6000 pulse duplicator system yielding high repeatability, reproducibility and dynamic configurability.

Read More…

The accompanying Statys® HDTi control and monitoring software gives the user absolute control over the pulse duplicator excitation waveform, while seamlessly integrated all cameras for both live and post-test video review. The real-time data collection and analysis tools embedded in the software provide instantaneous measurement the device parameters, such as pressure drop, effective orifice area, regurgitant volumes, and leakage rates.

  • Integrated High Speed Video (Optional):
    • High resolution high speed cameras integrated into the test system eliminate the need for secondary video systems
    • With up to 5 cameras, the heart valve under test can be complete assessed and documented from all angles
    • Integrated video playback with synchronized pressure and flow waveforms provide the ultimate platform for investigation and analysis
  • Linear Clamp Operation:
    • A captured acrylic fixture secures the heart valve test article to facilitate quick exchange and ease-of use
    • Changing of the heart valve test article can occur without the need to drain the system fluid
  • Heart Valve Type: Aortic, Mitral, Pulmonary, or Tricuspid
  • Heart Valve Size: Up to 95 mm (standard)
  • Flow Rate: 0-10 L/min
  • Driving Waveform: Sinusoidal, Arbitrary
  • Frequency: 2-240 bpm
  • Test Fluid: Water, Saline, PBS Solution, Blood Analog
  • Temperature: up to 50 °C
  • Flow Monitoring: Ultrasonic Technology
  • Regulatory Compliance: Complies with ISO 5840, and all applicable European Union directives and standards for safety and EMC. CE Marked.
  • Integrated data collection and analysis tools to determine all required ISO 5840 and FDA test parameters either real-time or through post processing
  • Integrated video playback with synchronized pressure and flow waveforms provide the ultimate platform for investigation and analysis
  • Real-time separation of the continual waveforms into individual beats ease data review
  • Sinusoidal or arbitrary waveform driver excitation accurately simulates clinical performance
  • Beat analysis reduced data is summarized and output in excel format to quick processing
  • Auto-generated reports with all relevant data for efficient documentation of each test
  • All temporal signals can be output and saved in high-fidelity for post-test waveform analysis
  • User-focused software environment to facilitate ease of system operation
  • High Speed Cameras: The HDTi-6000 can accommodate up to 5 high speed cameras with 1280×1024 resolution. The cameras can be oriented for inflow, outflow and each of the 3 leaflet aspects.
  • Flow Meter with Probe: Customized ultrasonic flow meter with probe gives precise, temporal volume flow measurement.
  • Automated Image Analyses: In addition to manual measurements from acquired video, the automated image analysis package provides means to determine key attributes automatically through software algorithms.
  • Calibration Reference: Custom designed calibration reference of all camera to convert pixels to physical dimensions (e.g. millimeters).
  • Adjustable Lighting Source: Optimal system adjustable LED lighting system that includes either ring or panel lights to optimal video imaging.
  • Heating Circulation Valve: System valve to utilize at a test article to facilitate heating during initiation of test system.
  • Drip Tray: Test system drip tray designed to integrated with the test apparatus and capture all fluid leaks.
Request InformationRequest a DemoRequest a QuoteDownload Brochure

Testing Equipment

PQT | Heart Valve Production System

The PQT-5000 is the first pulsatile flow heart valve functional performance test system designed specifically for the production environment. Read more »

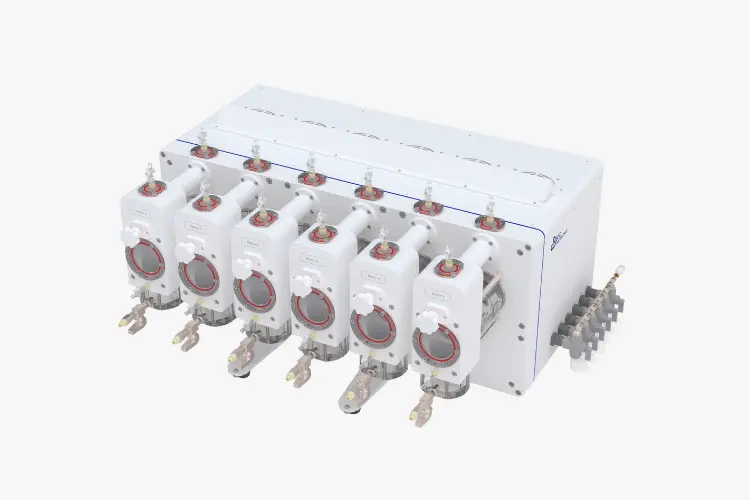

VDT | Heart Valve Durability System

Industry has spoken to describe the ideal heart valve accelerated wear test system for modern technologies and BDC Laboratories has listened and created the patented VDT-3600i AWT tester. Read more »

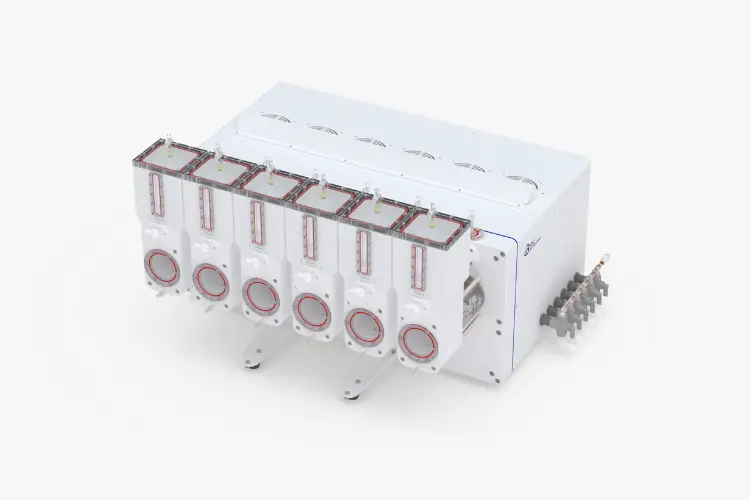

RWT | Heart Valve Real-Time Wear System

BDC Laboratories’ RWT-4600i heart valve real-time wear tester operates both as a real-time wear test system and accelerated wear test system.
Read more »

SFT | Heart Valve Steady Flow System

The SFT-1000 heart valve steady flow hydrodynamic test system is another revolutionary test instrument from BDC Laboratories. Read more »

RDTL | Stent Durability System

BDC Labs RDTL-0200 radial durability tester incorporates our patented Drive System and Dual-Drive Emulator for superior test stability and performance. Read more »

PD | Pulsatile Pump Systems

From our extensive background in cardiovascular hemodynamics, BDC developed the PD-1100, PD-0750 and PD-0500 pulsatile pumps and portable pulse duplicators to meet testing and surgeon training requirements for endovascular and heart valve technologies. Read more »

Simulated Use Test Systems

BDC Laboratories designs and builds custom “turn-key” simulated use systems that include clinically relevant vascular pathways while accurately achieving the appropriate hemodynamics within the model. Read more »

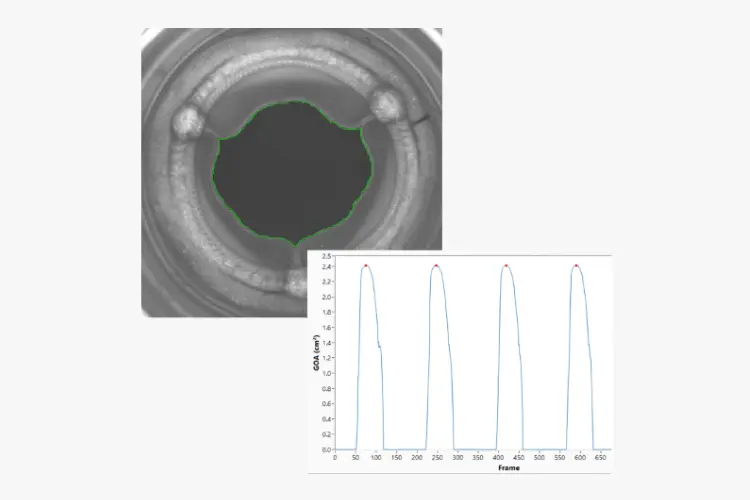

Statys® Software
