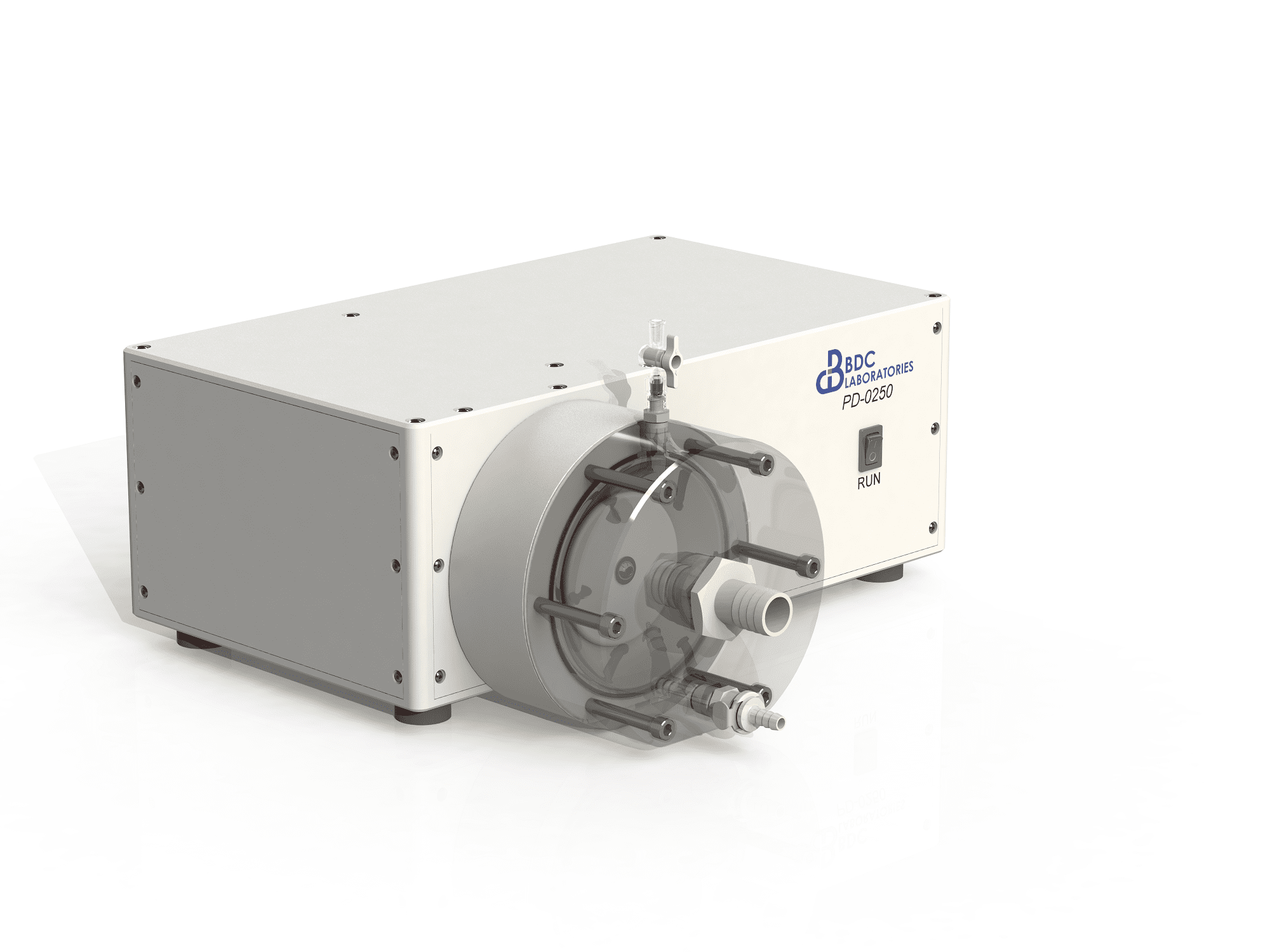

PD-0250
Portable Oscillating Pump System
BDC Laboratories’ PD-0250 delivers a compact, purely oscillating flow source for applications requiring a dynamic flow environment. When coupled with valve technologies, the PD-0250 is a reliable driver that facilitates highly repeatable opening and closing dynamics of test articles. The PD-0250 uses a diaphragm-based drive mechanism that requires very low maintenance and delivers high reliability.
Key System Features
Application Versatility
Easily integrated with BDC Laboratories’ simulation solutions or other simulated use test systems requiring pulsatile flow for an extensive array of applications including device and delivery system testing, marketing and sales demonstrations, and physician training.
Portability
Portable and quick to set up, with minimal training needed for operation within minutes; can be transported as checked luggage or shipped in a custom hard-shell case (optional).
Specs and Software
- Frequency: 60 to 90 bpm (preset in manufacturing)
- Test Fluid: Water, Saline, PBS Solution
- Stroke Volume: 30 to 59 ml (preset in manufacturing or adjusted in the lab)
- Max Pressure: 300 mm Hg
- Regulatory Compliance: Complies with all applicable European Union directives and standards for safety and EMC. CE Marked; RoHS Compliant.
Extend Your System
Optional accessories are available to extend your system’s capabilities. Add-ons can be purchased to support specific applications and configurations.
Statys® Portable Pressure Monitoring System
BDC Laboratories’ pulse duplicators support our Statys® pressure monitoring software for pressure monitoring, data logging, and support for up to four pressure transducers using integrated data acquisition hardware.
Flow Rate Adjustment
Select from three user-defined flow rate slots (e.g., 2, 3, and 5 L/min) using the drive head to match the needs of your mock circulatory loop. This feature can be preset in manufacturing or adjusted in the lab.
Shipping Case
The customized shipping case for the PD-0250 protects the system with a rugged, fully padded foam interior that is watertight, crushproof, and dustproof. It features an extendable handle and four wheels, and users can check it as airline luggage with little risk of damaging the contents.
Equipment Care Program
Proactive Maintenance for Uninterrupted Operations
Keep your equipment performing at its best with the only maintenance program backed by the experts who built it. This annual service includes maintenance, worn part replacement, optional upgrades, and a final Operational Qualification (OQ) to confirm functionality and performance, completed at our facility.
Why BDC?
A Partner from the Start
From first conversation through final setup, we work closely with your team to deliver the right test systems for your device goals.
Built for Your Timeline
We make it easy to get the equipment you need, when you need it, through expert equipment scoping, timely Factory Acceptance Testing and production, and dependable logistics.
Support That Lasts
We stay involved post-delivery with onboarding, maintenance, and technical support to reduce downtime and help you get the most from your equipment.
Explore More

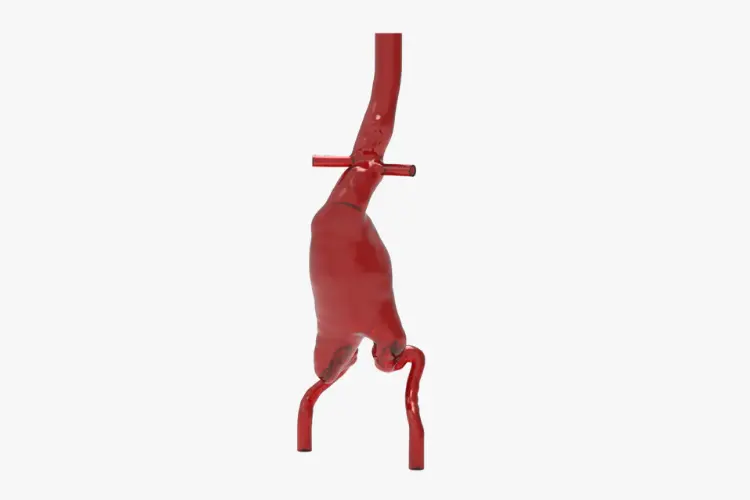

Silicone Vessels

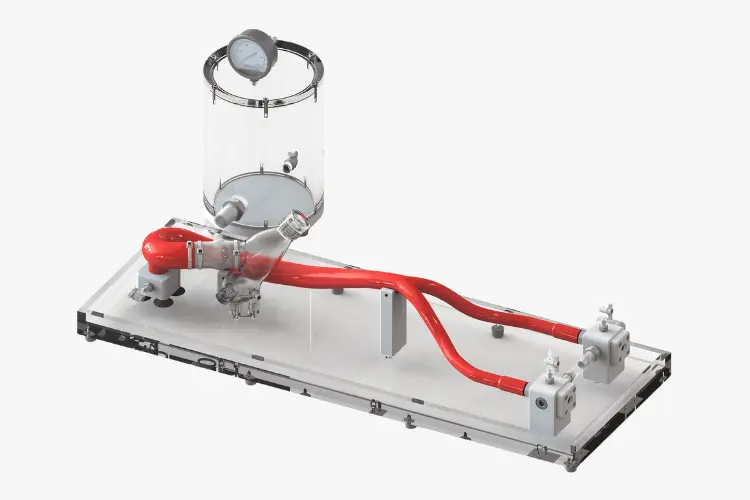

Simulated Use Systems
