Mitral Valve Simulation

The Transcatheter Mitral Heart Valve Simulated Use Solution from BDC Labs provides a turn-key platform to evaluate both Mitral Valve Replacement (TMVR) and Mitral Valve Repair technologies for the treatment of Mitral Regurgitation (MR).

Transcatheter Mitral Solution

  • Mitral Valve Replacement
  • Leaflet Plication / Mitral Valve Leaflet Clips
  • Leaflet Space Occupiers
  • Annuloplasty Rings and Bands
  • Coronary Sinus Annuloplasty / Reshaping
  • Chordae Replacement

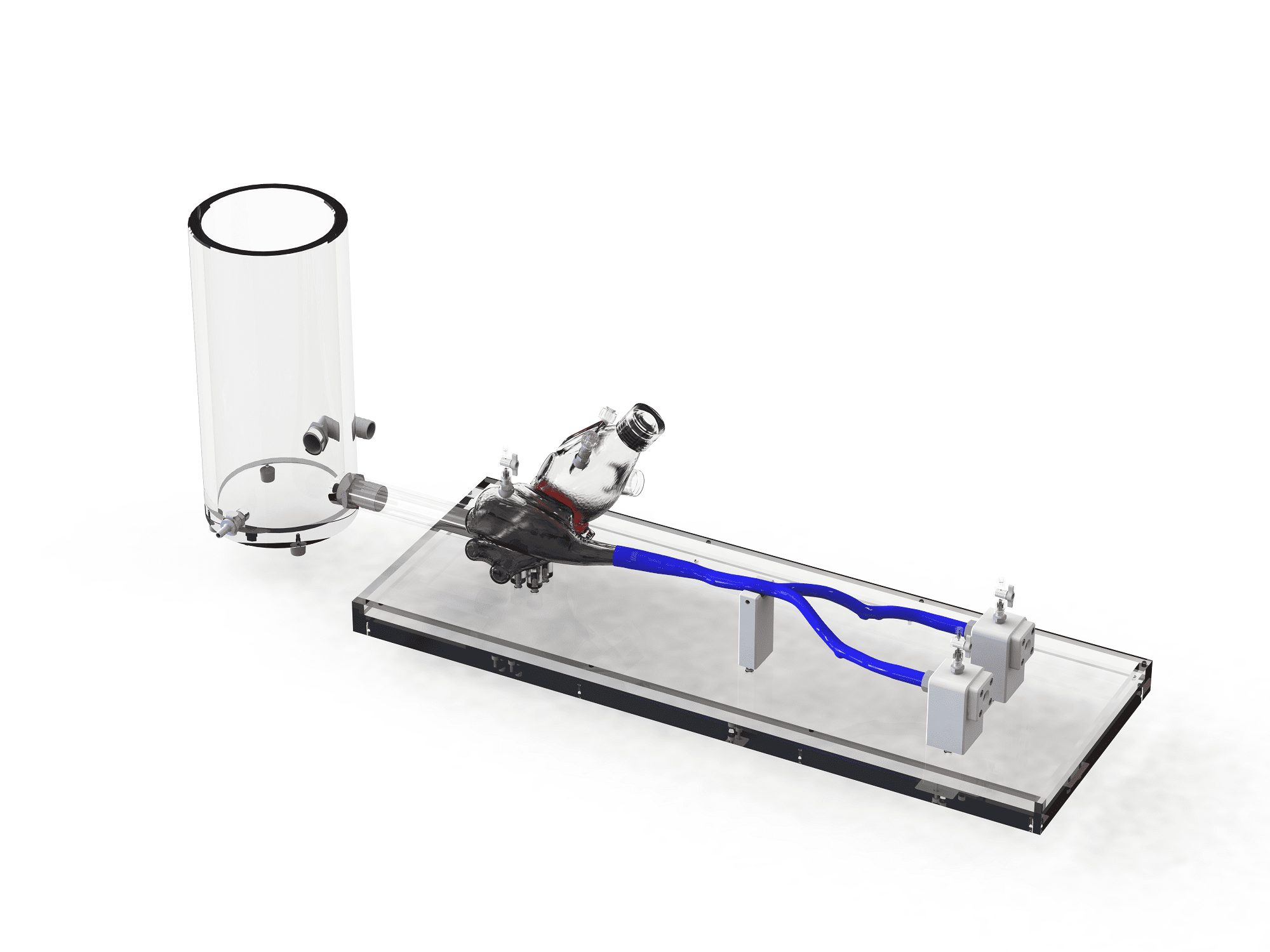

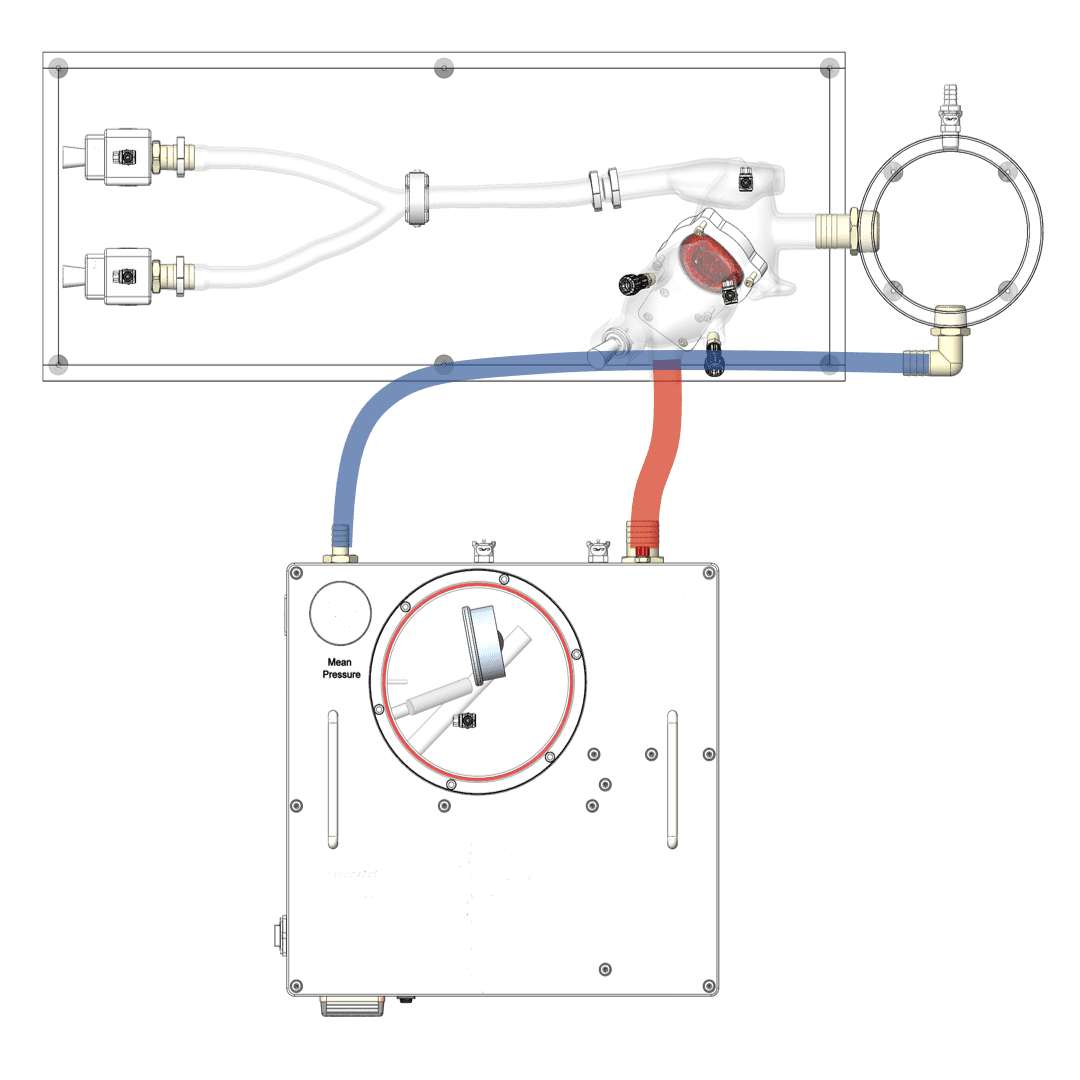

This heart valve mock circulatory loop (MCL) consists of the right atrium, left atrium, left ventricle, functioning silicone mitral valve with chordae, inferior vena cava, and the femoral veins. Either a pre-defined septal hole or replaceable, puncturable septum is present between the left atrium and the right atrium. The model facilitates transcatheter delivery system access with integrated hemostatic valves at the femoral veins and transapically. Additional, custom access approaches such as direct aortic and subclavian routes can also be integrated into the simulated use system.

System features and benefits


  • Clinically relevant bench scale model for development activities and training cardiovascular interventionists
  • Clear, heart (rigid or compliant) allows visibility of the Mitral Valve in situ
  • Clear, compliant silicone vasculature allow visibility of the delivery system and device
  • Functional silicone Mitral Valve with Chordae is easily installed/removed
  • Mitral Valve Chordae can be grouped, adjusted and tensioned as desired to affect valve performance
  • Mitral Valve features realistic, valve movement and leaflet geometry
  • Femoral Vein / Transseptal and Transapical access is standard
  • Integrated hemostatic valves accommodate delivery system entry via femoral and transapically access
  • Drip tray catches any fluid spills during testing and simulation
  • Mock vessel supports ensures the mock vessels retain their 3D configuration during procedures
  • PD-0750 Portable Pulse Duplicator offers temperature-controlled, clinically relevant pulsatile environment
  • Real-time pulsatile pressure adjustment without stopping the simulation
  • Portable, with optional rugged, hard-sided travel case for air-travel
