Aortic Valve Simulation

The Transcatheter Aortic Heart Valve Simulated Use Solution from BDC Labs provides a complete, turn-key platform to evaluate Transcatheter Aortic Valve Replacement (TAVR/TAVI) procedures for the treatment of aortic valve stenosis.

Aortic Valve Simulation

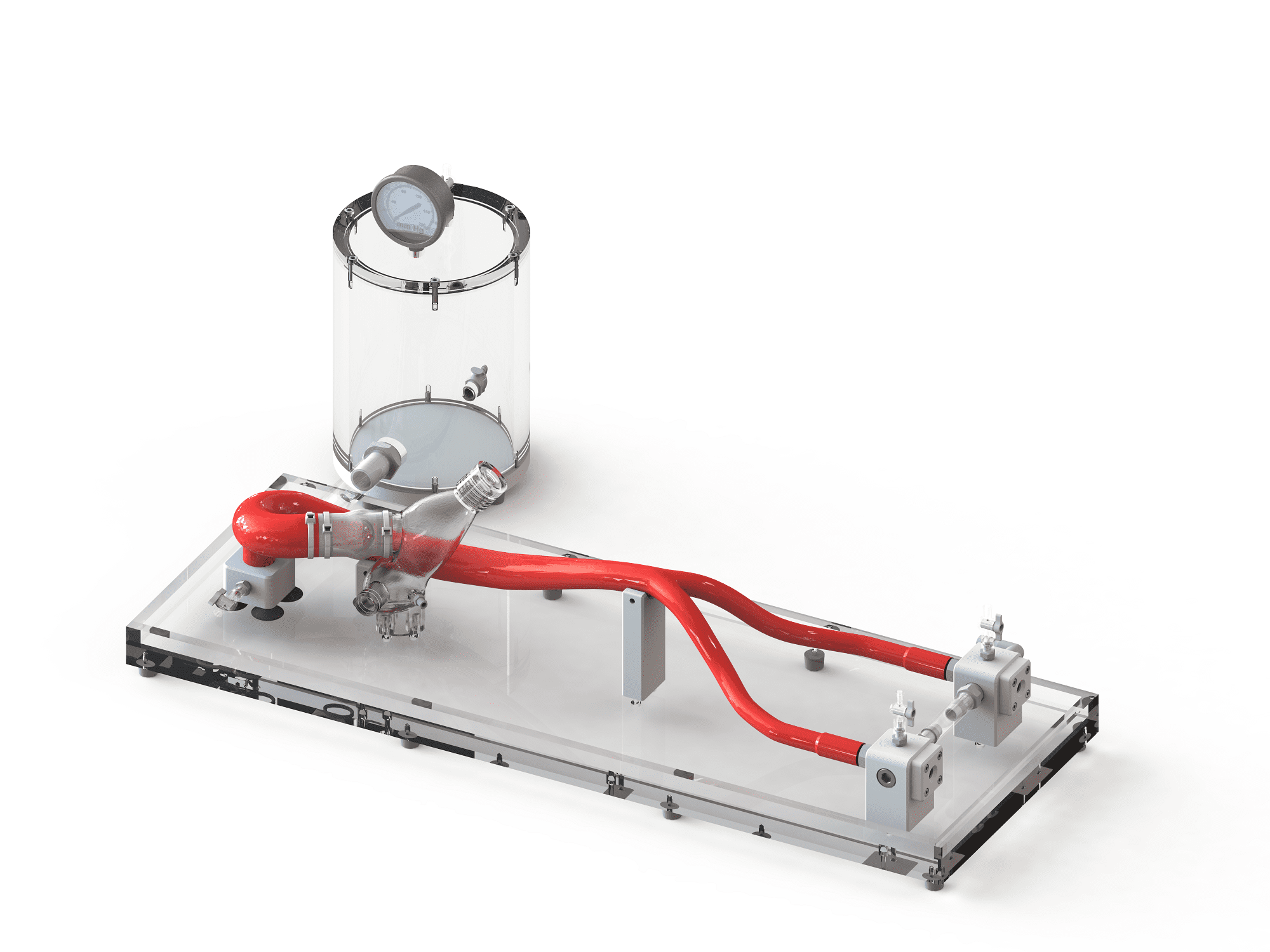

This heart valve mock circulatory loop (MCL) consists of a left ventricle, functioning silicone aortic valve, aortic arch, descending aorta and femoral arteries. The model has access ports with integrated hemostatic valves at the femoral arteries and transapically to facilitate advancement and delivery of TAVR implants. Additional, custom access approaches through direct aortic or femoral vein can also be integrated into the simulated use system.

System features and benefits

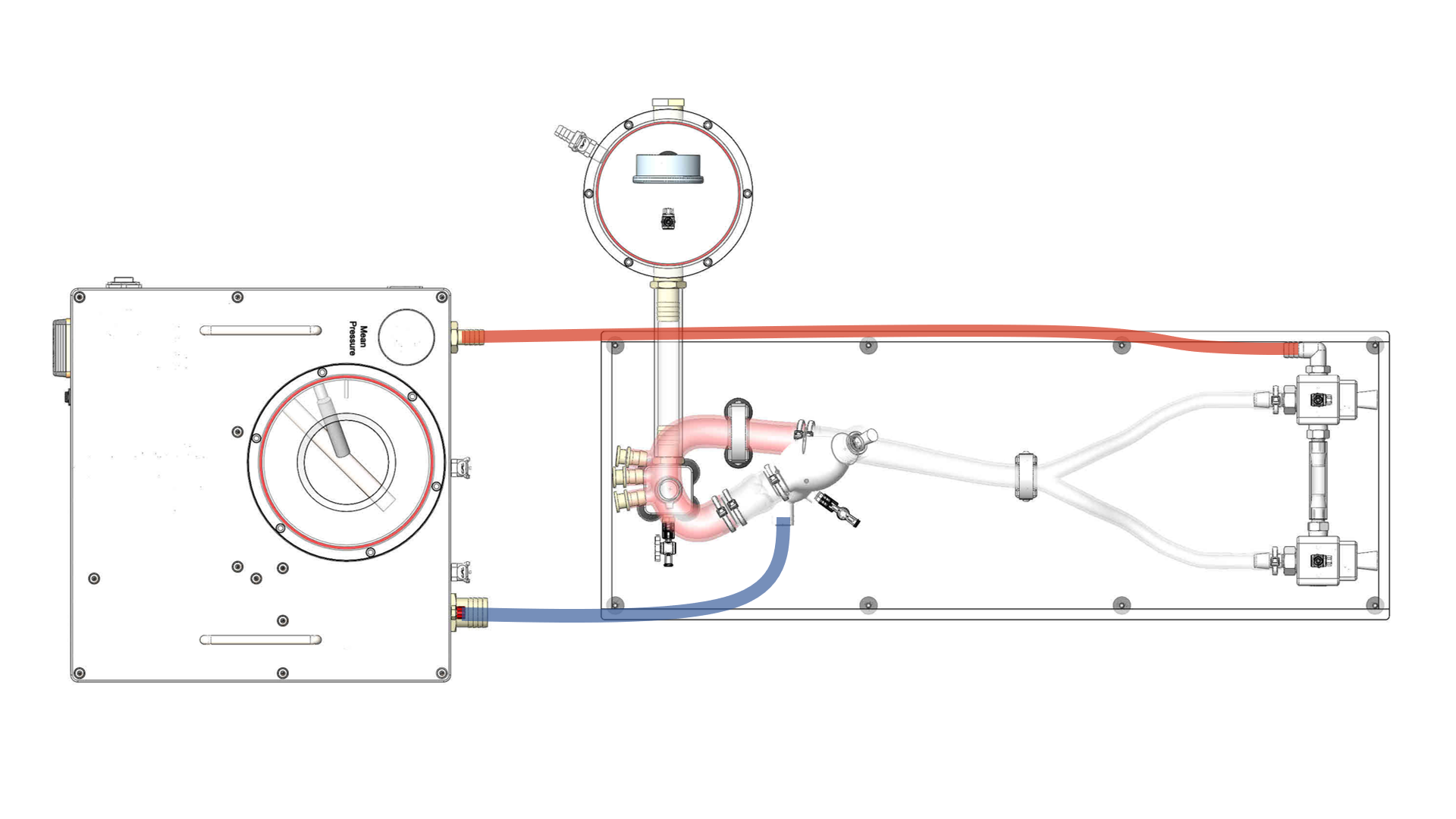

Aortic Simulation Setup

  • Clinically relevant bench scale model for development activities and training cardiovascular interventionists
  • Clear, rigid left ventricle allows visibility of the Aortic Valve in situ
  • Clear, compliant silicone vasculature allow visibility of the delivery system and device
  • Functional silicone Aortic Valve with realistic leaflet motion easily installed/removed
  • Femoral Artery and Transapical access is standard
  • Integrated hemostatic valves accommodate delivery system entry via femoral and transapical access
  • Drip tray catches any fluid spills during testing and simulation
  • Mock vessel supports ensures the mock vessels retain their 3D configuration during procedures
  • PD-0750 Portable Pulse Duplicator offers temperature-controlled, clinically relevant pulsatile environment
  • Real-time pulsatile pressure adjustment without stopping the simulation
  • Portable, with optional rugged, hard-sided travel case for air-travel
