Standard Anatomic Vessels

To better serve our client’s whom do not have easy access to patient datasets for custom silicone models, BDC Laboratories also offers a library of standard anatomical vessels, representative of both healthy and diseased states. These models can be purchased with our standard geometry and dimensions or through our expert team, any and all vessel attributes can be modified to your requirements. With specialized computer aided design software, the modified model is available for review prior to build to ensure the final product will align with your expectations.

Read More…

BDC can also fabricate our silicone mock vessels with embedded radiopaque markers integrated into the wall to support fluoroscopic and X-ray imaging-based studies. Radiopaque markers can be integrated at any location in the model to meet your requirements in support of its use for device evaluations such as deployment accuracy testing.

This library is continually expanding over time so keep checking back for updates. The images shown in the catalog below are presented in red for illustration purposes only, all final silicone vessels are clear for viewing and in situ analysis of your endovascular and heart valve technologies.

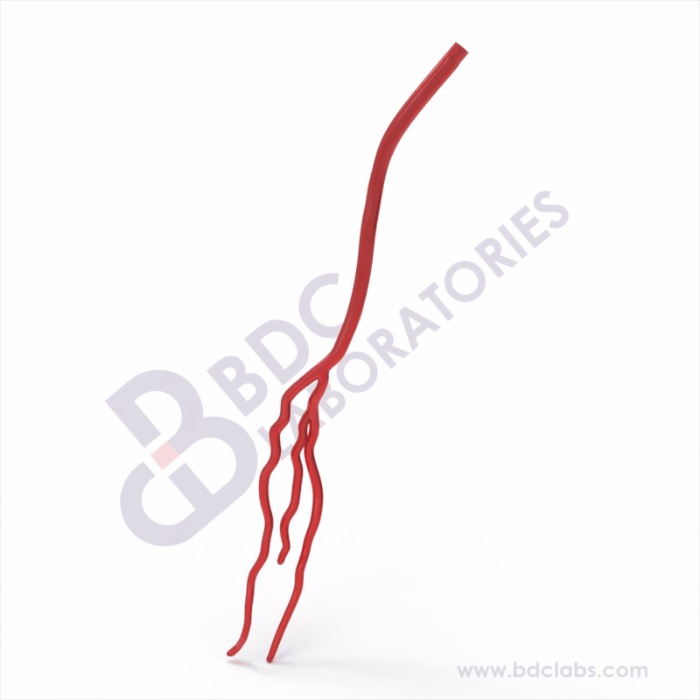

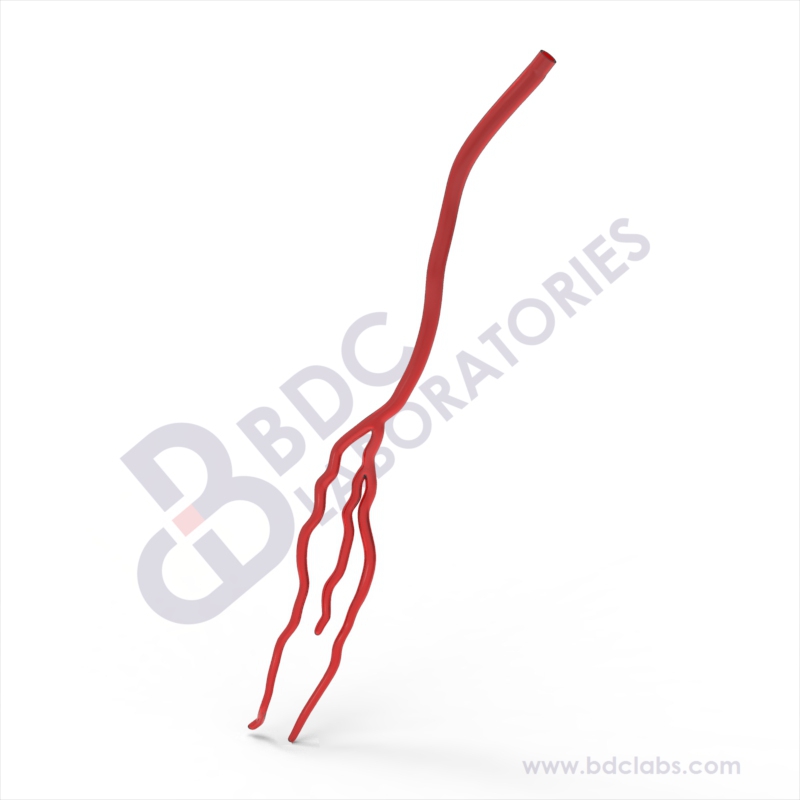

Brachial/Radial/Ulnar Artery (SBRU-1)

Brachial/Radial/Ulnar Artery (SBRU-1) Image

SKU: SBRU-1 | Lumen: 3D, Normative.

The Brachial/Radial/Ulnar Artery model extends from the axillary artery region down to the radial and ulnar arteries. Access is provided through the radial and ulnar arteries.

Applications:
The Brachial/Radial/Ulnar Artery model can be used for marketing, testing, demonstration and training purposes for a wide range of applications.

This model can also be used to simulate Percutaneous Coronary Interventions (PCI) and a range of other endovascular procedures where transradial access (TRA) is an increasingly frequent option.

A range of optional accessories from BDC Labs is available here, to set up a Mock Circulatory Loop (MCL) or a simulation system incorporating the Brachial/Radial/Ulnar Artery model.

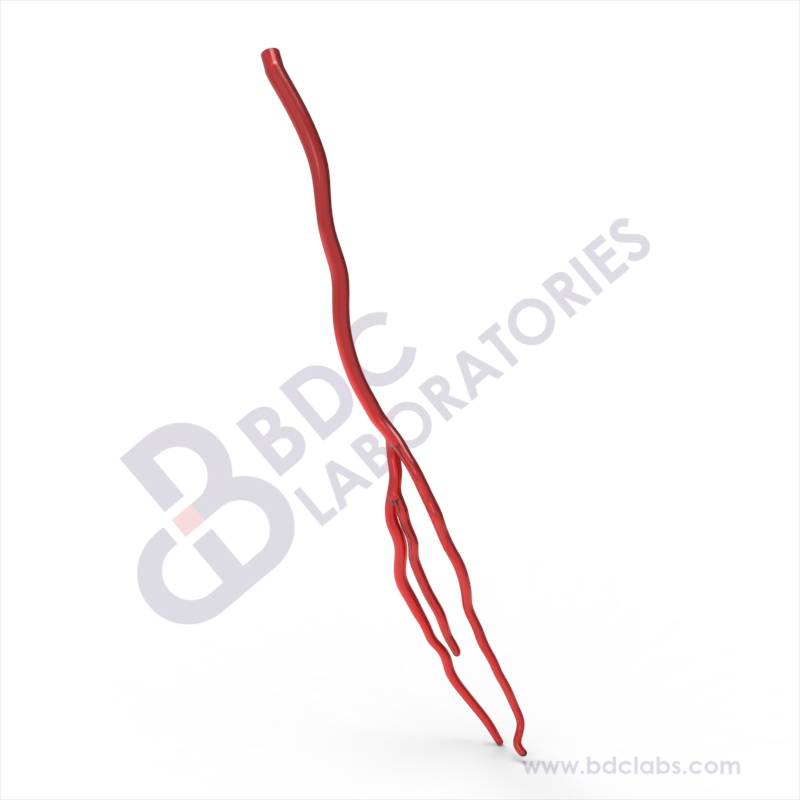

Brachial/Radial/Ulnar Artery (SBRU-1)

Brachial/Radial/Ulnar Artery (SBRU-1) Image

SKU: SBRU-1 | Lumen: 3D, Normative.

The Brachial/Radial/Ulnar Artery model extends from the axillary artery region down to the radial and ulnar arteries. Access is provided through the radial and ulnar arteries.

Applications:
The Brachial/Radial/Ulnar Artery model can be used for marketing, testing, demonstration and training purposes for a wide range of applications.

This model can also be used to simulate Percutaneous Coronary Interventions (PCI) and a range of other endovascular procedures where transradial access (TRA) is an increasingly frequent option.

A range of optional accessories from BDC Labs is available here, to set up a Mock Circulatory Loop (MCL) or a simulation system incorporating the Brachial/Radial/Ulnar Artery model.

Request InformationRequest a QuoteRequest a SampleDownload Brochure

Silicone Mock Vessels

Mock Anatomy and Models

BDC Labs Silicone Mock Anatomy can be used for Validation & Verification Testing, Marketing & Sales Activities, and Demonstration Materials. Read more »

Product Certification

BDC Labs silicone mock vessels are certified prior to shipment per ISO 7198 guidelines to match clinical dynamic compliance. Read more »

SLIC Friction Reduction Coating

BDC’s proprietary SLIC friction reduction coating is a surface treatment that reduces the inherent friction of the silicone mock vessel lumen by up to 40%. Read more »
