Standard Anatomic Vessels

To better serve our client’s whom do not have easy access to patient datasets for custom silicone models, BDC Laboratories also offers a library of standard anatomical vessels, representative of both healthy and diseased states. These models can be purchased with our standard geometry and dimensions or through our expert team, any and all vessel attributes can be modified to your requirements. With specialized computer aided design software, the modified model is available for review prior to build to ensure the final product will align with your expectations.

Read More…

BDC can also fabricate our silicone mock vessels with embedded radiopaque markers integrated into the wall to support fluoroscopic and X-ray imaging-based studies. Radiopaque markers can be integrated at any location in the model to meet your requirements in support of its use for device evaluations such as deployment accuracy testing.

This library is continually expanding over time so keep checking back for updates. The images shown in the catalog below are presented in red for illustration purposes only, all final silicone vessels are clear for viewing and in situ analysis of your endovascular and heart valve technologies.

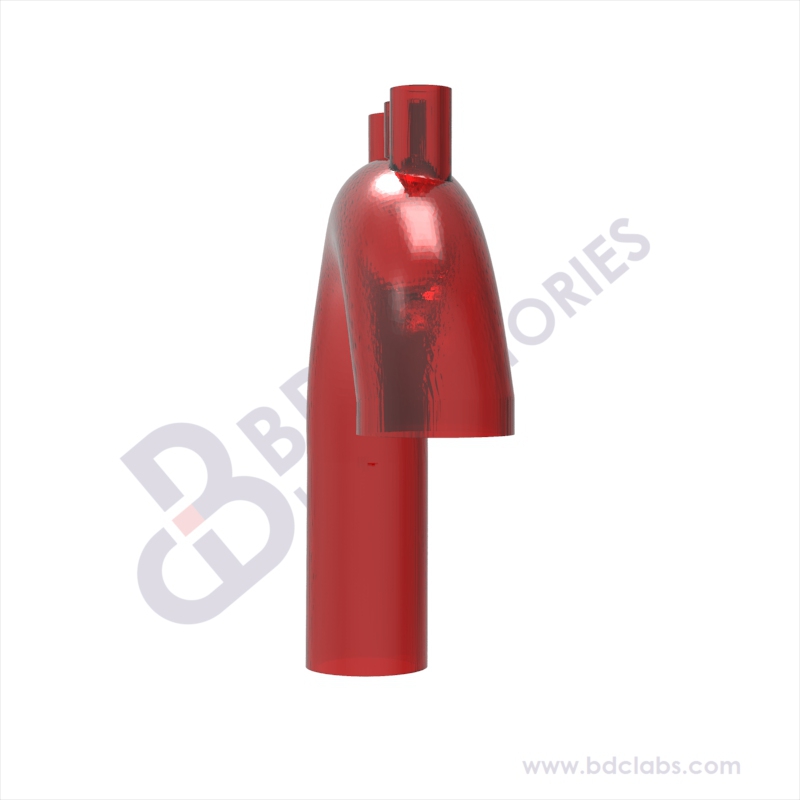

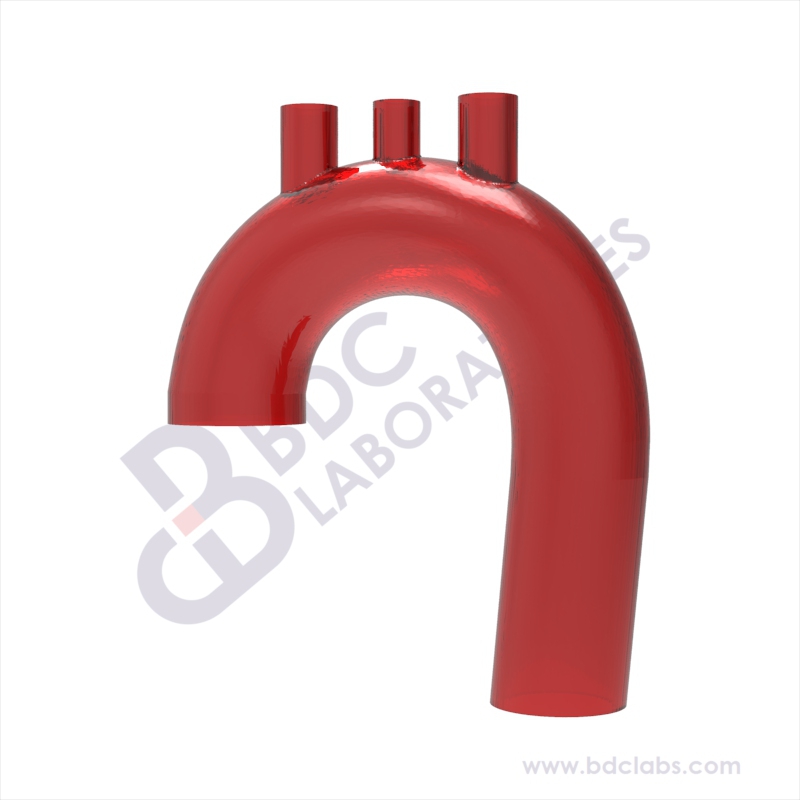

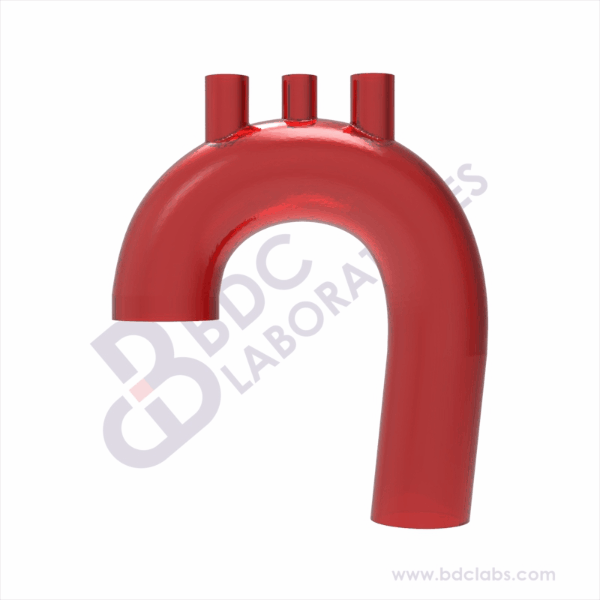

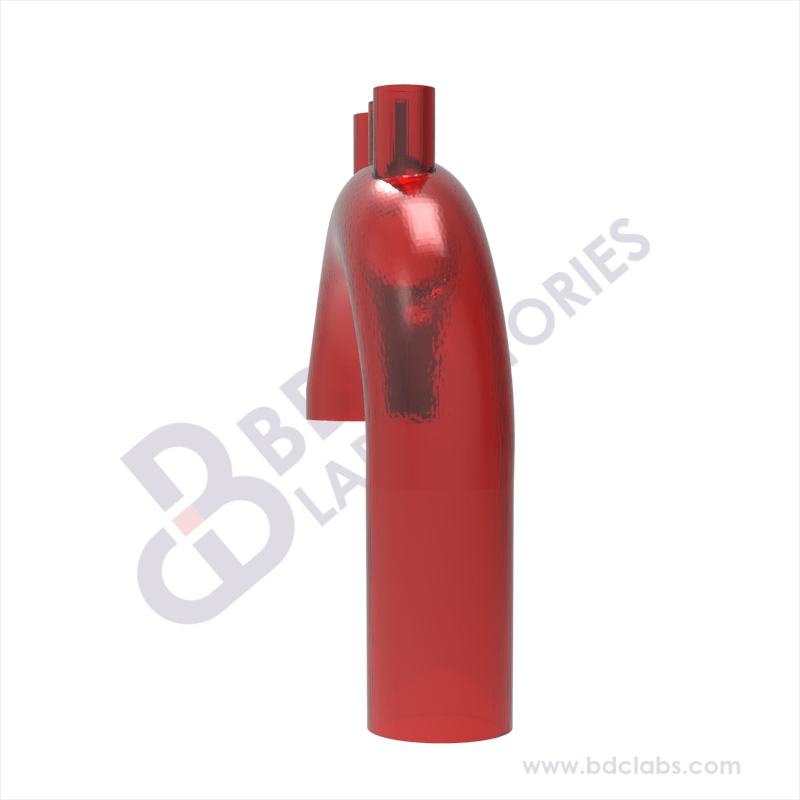

Romanesque Aortic Arch (SAAAR-2DH)

Romanesque Aortic Arch (SAAAR-2DH) Image

SKU: SAAAR-2DH | Lumen: 2D, Normative.

A 2-dimensional clinical aortic arch vessel with main branch vessels present. The primary radius of curvature or Romaneque curvature is appropriate for a patient with healthy arch region. The Arch offers access via the short brachiocephalic, left common carotid and left subclavian arteries. The Arch can be attached to the optional Descending Aorta (SKU: SADA-2D) distally and to the Aortic Root (SKU: SAAV).

Applications:
The Healthy Aortic Arch can be used for marketing, testing, demonstration and training purposes for a wide range of applications.

When used as a part of a complete Descending Aorta with Aortic Root, the Arch can also be used for the Transcatheter Aortic Valve Repair/Replacement (TAVR), or Transcatheter Aortic Valve Implantation (TAVI) simulation, via Transfemoral or Transapical Approach.

The Aortic Arch can also be attached to the optional Carotid Arteries and Circle of Willis anatomy (SKU: SANVV-H) to simulate endovascular procedures for the treatment of stenoses with the use of intravascular devices such as stents, coils, Flow Diverters and Pipeline Embolization Devices.

A range of optional accessories from BDC Labs is available here, to set up a Mock Circulatory Loop (MCL) or a simulation system incorporating the Aortic Arch.

Romanesque Aortic Arch (SAAAR-2DH)

Romanesque Aortic Arch (SAAAR-2DH) Image

SKU: SAAAR-2DH | Lumen: 2D, Normative.

A 2-dimensional clinical aortic arch vessel with main branch vessels present. The primary radius of curvature or Romaneque curvature is appropriate for a patient with healthy arch region. The Arch offers access via the short brachiocephalic, left common carotid and left subclavian arteries. The Arch can be attached to the optional Descending Aorta (SKU: SADA-2D) distally and to the Aortic Root (SKU: SAAV).

Applications:
The Healthy Aortic Arch can be used for marketing, testing, demonstration and training purposes for a wide range of applications.

When used as a part of a complete Descending Aorta with Aortic Root, the Arch can also be used for the Transcatheter Aortic Valve Repair/Replacement (TAVR), or Transcatheter Aortic Valve Implantation (TAVI) simulation, via Transfemoral or Transapical Approach.

The Aortic Arch can also be attached to the optional Carotid Arteries and Circle of Willis anatomy (SKU: SANVV-H) to simulate endovascular procedures for the treatment of stenoses with the use of intravascular devices such as stents, coils, Flow Diverters and Pipeline Embolization Devices.

A range of optional accessories from BDC Labs is available here, to set up a Mock Circulatory Loop (MCL) or a simulation system incorporating the Aortic Arch.

Request InformationRequest a QuoteRequest a SampleDownload Brochure

Silicone Mock Vessels

Mock Anatomy and Models

BDC Labs Silicone Mock Anatomy can be used for Validation & Verification Testing, Marketing & Sales Activities, and Demonstration Materials. Read more »

Product Certification

BDC Labs silicone mock vessels are certified prior to shipment per ISO 7198 guidelines to match clinical dynamic compliance. Read more »

SLIC Friction Reduction Coating

BDC’s proprietary SLIC friction reduction coating is a surface treatment that reduces the inherent friction of the silicone mock vessel lumen by up to 40%. Read more »
