Standard Anatomic Vessels

To better serve our client’s whom do not have easy access to patient datasets for custom silicone models, BDC Laboratories also offers a library of standard anatomical vessels, representative of both healthy and diseased states. These models can be purchased with our standard geometry and dimensions or through our expert team, any and all vessel attributes can be modified to your requirements. With specialized computer aided design software, the modified model is available for review prior to build to ensure the final product will align with your expectations.

Read More…

BDC can also fabricate our silicone mock vessels with embedded radiopaque markers integrated into the wall to support fluoroscopic and X-ray imaging-based studies. Radiopaque markers can be integrated at any location in the model to meet your requirements in support of its use for device evaluations such as deployment accuracy testing.

This library is continually expanding over time so keep checking back for updates. The images shown in the catalog below are presented in red for illustration purposes only, all final silicone vessels are clear for viewing and in situ analysis of your endovascular and heart valve technologies.

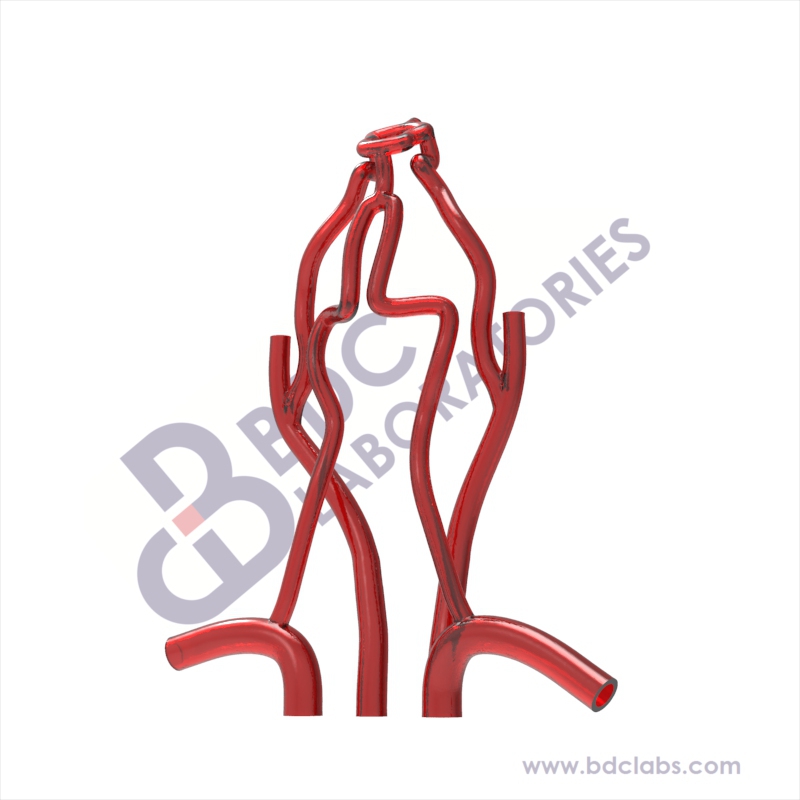

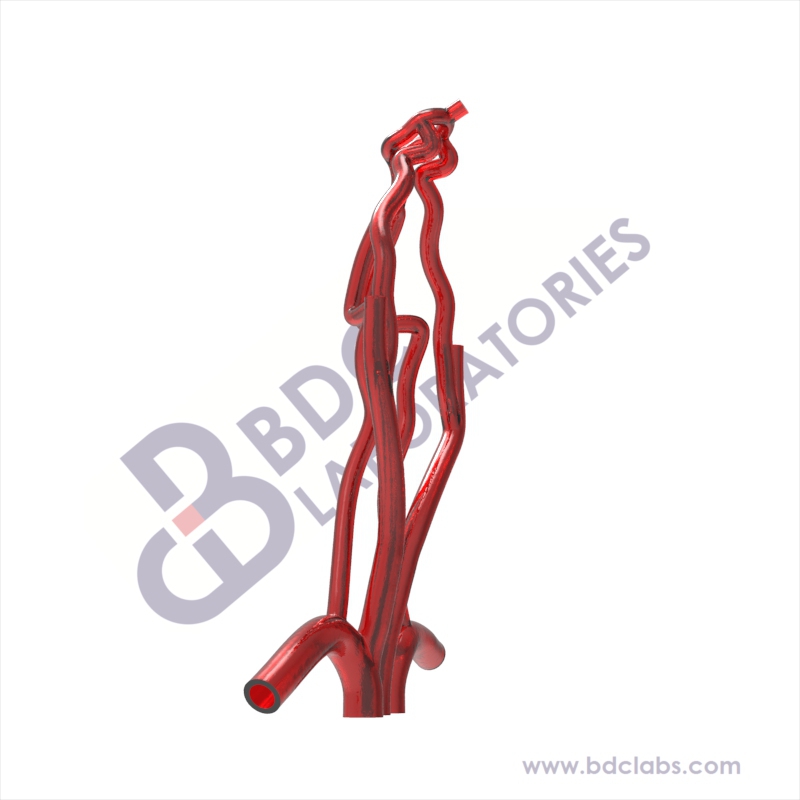

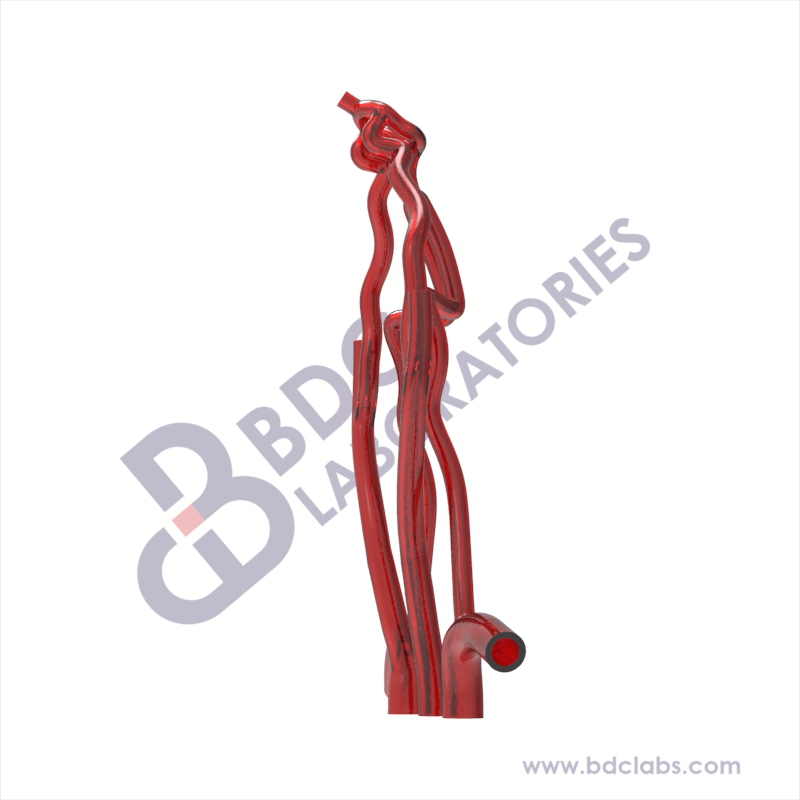

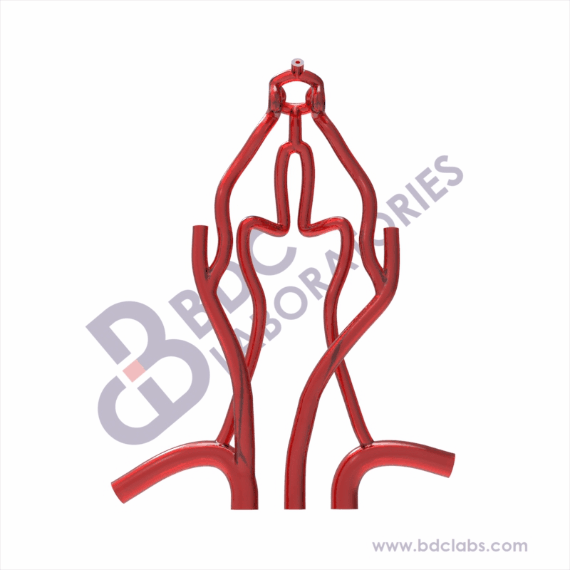

Carotid Arteries and Circle of Willis (SANVV-H)

Carotid Arteries and Circle of Willis (SANVV-H) Image

SKU: SANVV-H | Lumen: 3D, Normative.

A neurovascular vessel anatomy starting from the Aortic Arch branch vessels, distal through the Circle of Willis region, and including the Vertebral, Internal and External Carotid Arteries.

The distal branch vessels of the anatomy can be attached to the corresponding vessels in the optional Aortic Arch (SKU: SAAAR-2DH) or Descending Aorta with Aortic Arch (SKU: SACOA-2D) with barbed fittings.

Applications:
The Carotid Arteries and Circle of Willis can be used for marketing, testing, demonstration and training purposes for a wide range of applications.

The Carotid Arteries and Circle of Willis anatomy can also be used to simulate endovascular procedures such as Carotid Artery Stenting for the treatment of Carotid Artery Stenosis, as well as endovascular procedures for the treatment of intracranial aneurysms including stenting, coiling, Flow Diverters, and Pipeline Embolization Devices.

A range of optional accessories from BDC Labs is available here, to set up a Mock Circulatory Loop (MCL) or a simulation system incorporating the Carotid Arteries and Circle of Willis.

Carotid Arteries and Circle of Willis (SANVV-H)

Carotid Arteries and Circle of Willis (SANVV-H) Image

SKU: SANVV-H | Lumen: 3D, Normative.

A neurovascular vessel anatomy starting from the Aortic Arch branch vessels, distal through the Circle of Willis region, and including the Vertebral, Internal and External Carotid Arteries.

The distal branch vessels of the anatomy can be attached to the corresponding vessels in the optional Aortic Arch (SKU: SAAAR-2DH) or Descending Aorta with Aortic Arch (SKU: SACOA-2D) with barbed fittings.

Applications:
The Carotid Arteries and Circle of Willis can be used for marketing, testing, demonstration and training purposes for a wide range of applications.

The Carotid Arteries and Circle of Willis anatomy can also be used to simulate endovascular procedures such as Carotid Artery Stenting for the treatment of Carotid Artery Stenosis, as well as endovascular procedures for the treatment of intracranial aneurysms including stenting, coiling, Flow Diverters, and Pipeline Embolization Devices.

A range of optional accessories from BDC Labs is available here, to set up a Mock Circulatory Loop (MCL) or a simulation system incorporating the Carotid Arteries and Circle of Willis.

Request InformationRequest a QuoteRequest a SampleDownload Brochure

Silicone Mock Vessels

Mock Anatomy and Models

BDC Labs Silicone Mock Anatomy can be used for Validation & Verification Testing, Marketing & Sales Activities, and Demonstration Materials. Read more »

Product Certification

BDC Labs silicone mock vessels are certified prior to shipment per ISO 7198 guidelines to match clinical dynamic compliance. Read more »

SLIC Friction Reduction Coating

BDC’s proprietary SLIC friction reduction coating is a surface treatment that reduces the inherent friction of the silicone mock vessel lumen by up to 40%. Read more »
